China Wholesale Wholesale Pu Coated Galvanized Wire Rope Factories Pricelist - 19×7 high tensile steel wire cable galvanized steel wire rope for crane – Bangyi

Parameter

Product Description

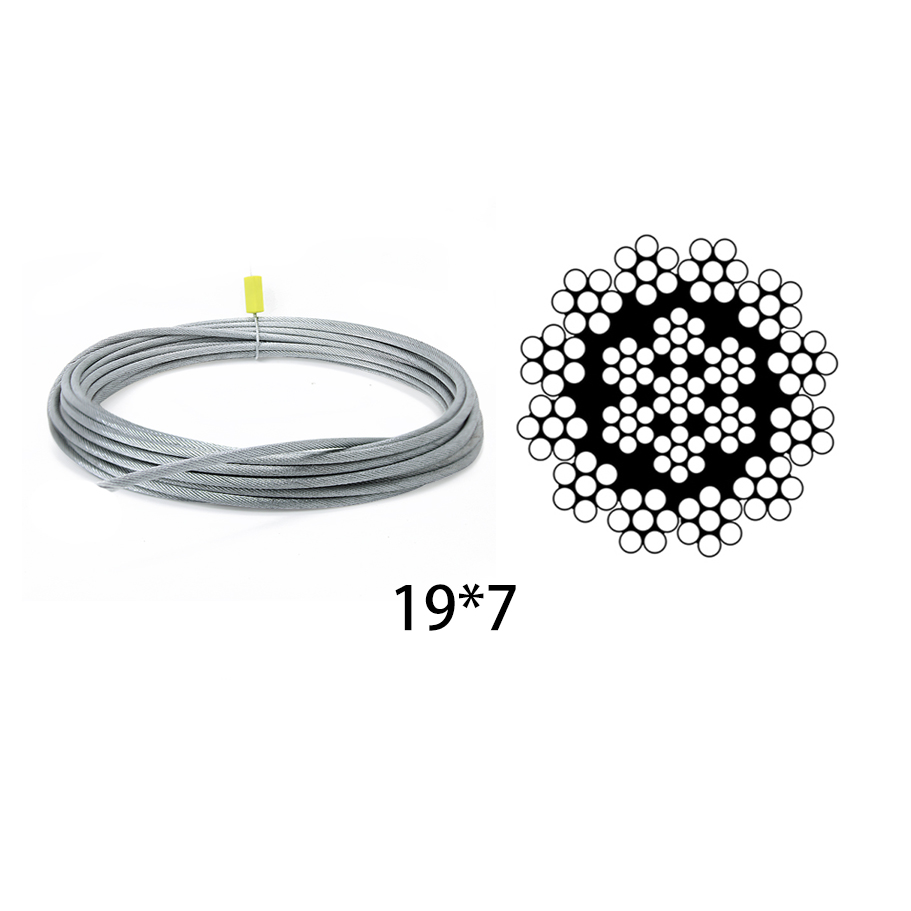

19×7 Galvanized Steel Wire Rope
	Diameter (MM)	Min. Breaking Load (KN)	Approx. Weight KG/100M
	6	20.9	14.5
	7	28.5	19.7
	8	37.2	25.7
	9	47.0	32.6
	10	58.1	40.2
	11	70.3	48.6
	12	83.6	57.9
	13	98.1	67.9
	14	114	78.8
	16	149	103

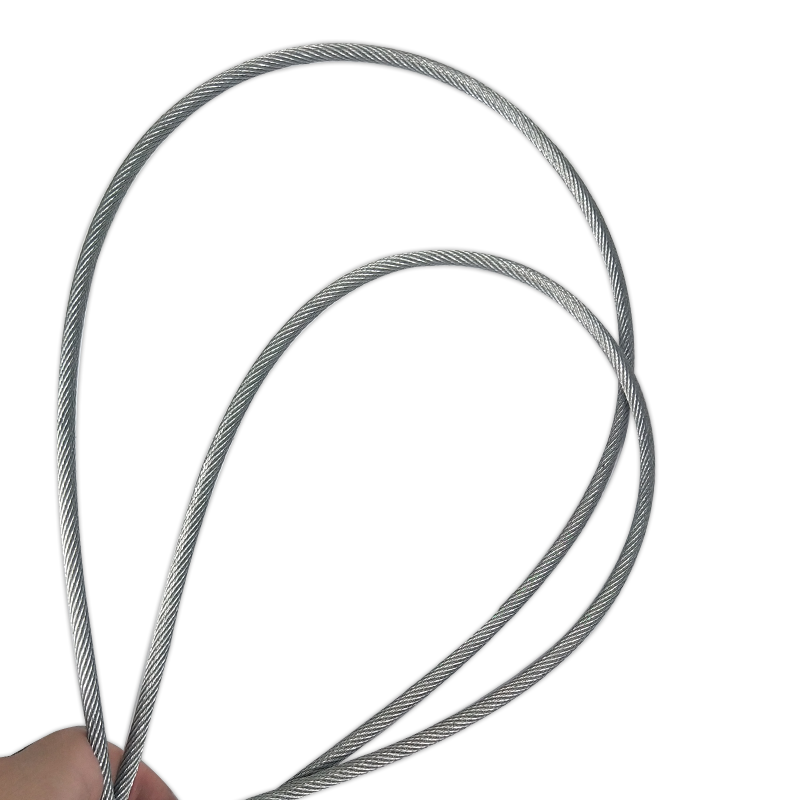

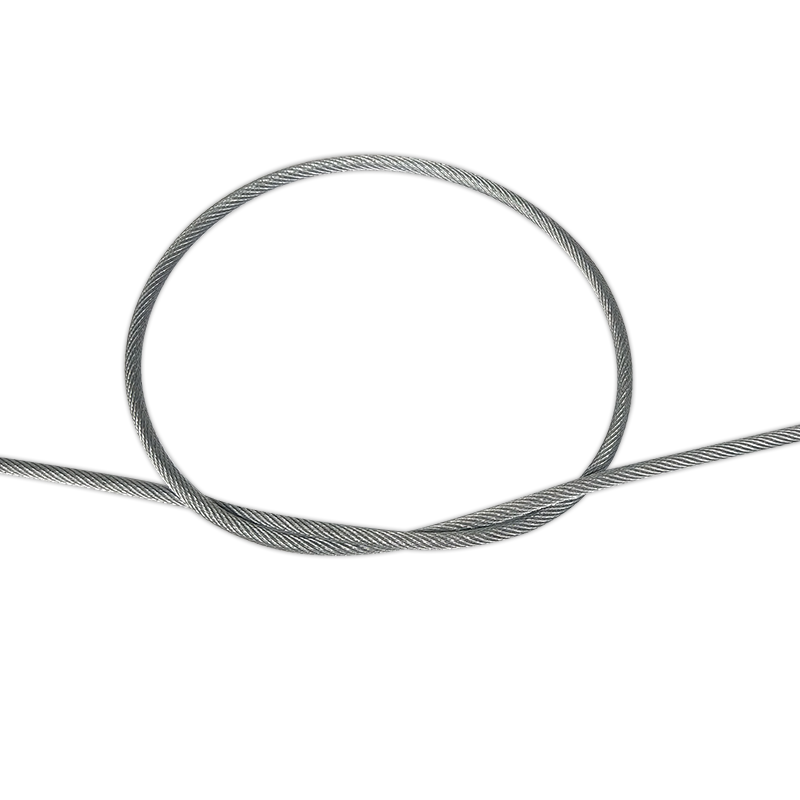

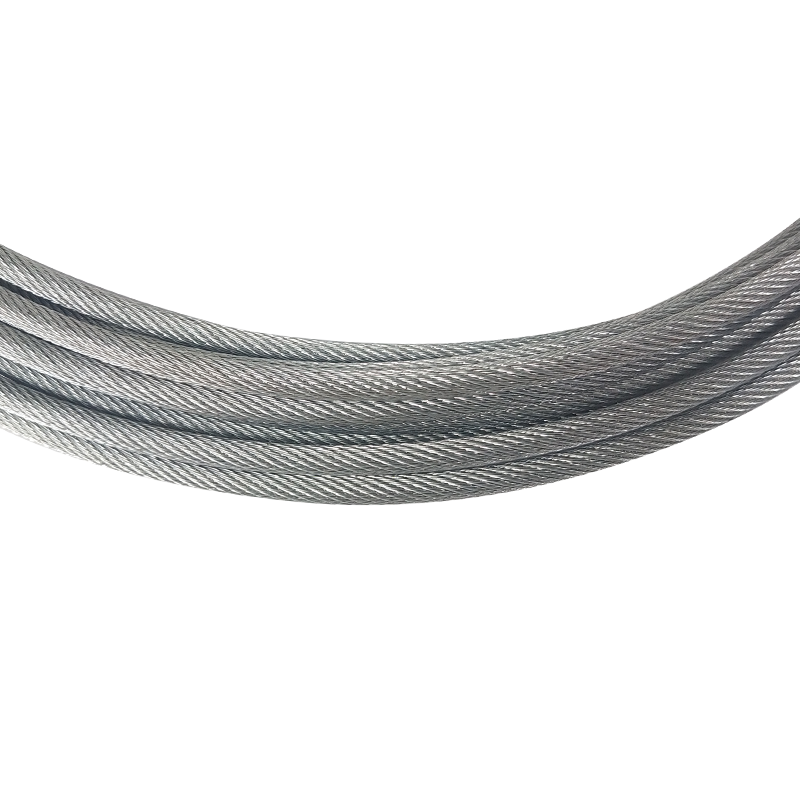

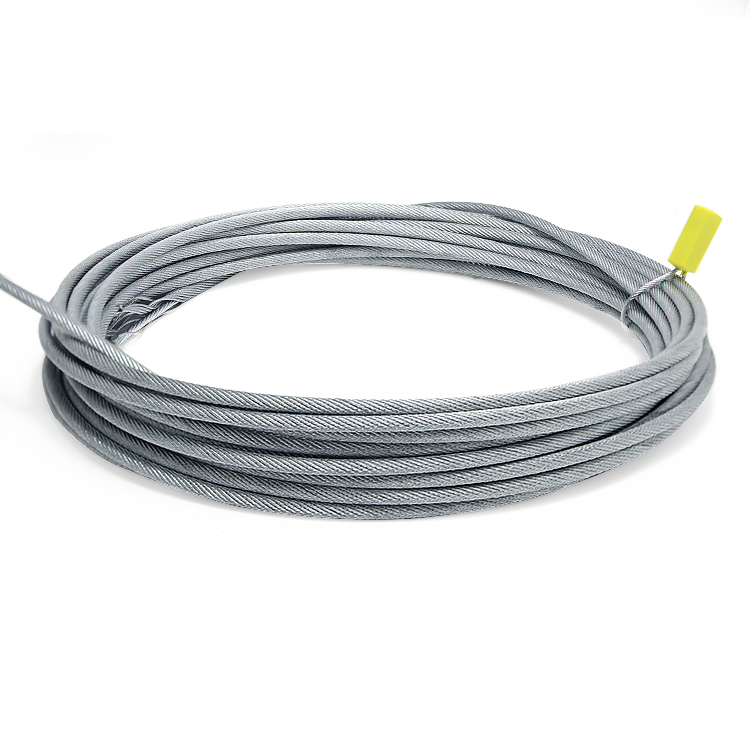

19×7 high tensile steel wire cable galvanized steel wire rope

1.galvanized stainless steel cable/stay wire

1)BWG8-BWG30 (0.305mm-4.191mm)

2)Processing with low carbon steel wire, through drawing and electric galvanizing

3)Standard wire gauge from 8 BWG to 26BWG

2.Technical Information

Steel Strand Wire
1)Material: super carbon steel
2)Processing by drawing, hot-dipped galvanizing
3)Standard wire gauge from 8BWG to 30BWG
4)Thick zinc-coating layer
5)Super in corrosion resistance
6)Firm coating layer
7)Custom size available
galvanized steel stay wire

1)Material: super carbon steel
2)Processing by drawing, hot-dipped galvanizing

3)Standard wire gauge from 8BWG to 30BWG
4)Thick zinc-coating layer
5)Super in corrosion resistance
6)Firm coating layer
7)Custom size available

3. Usage of galvanized steel stay wire

Galvanized wire is used for weaving of wire mesh, stranded conductors in overhead power circuitry,

Application

Packing & Delivery

PACKING

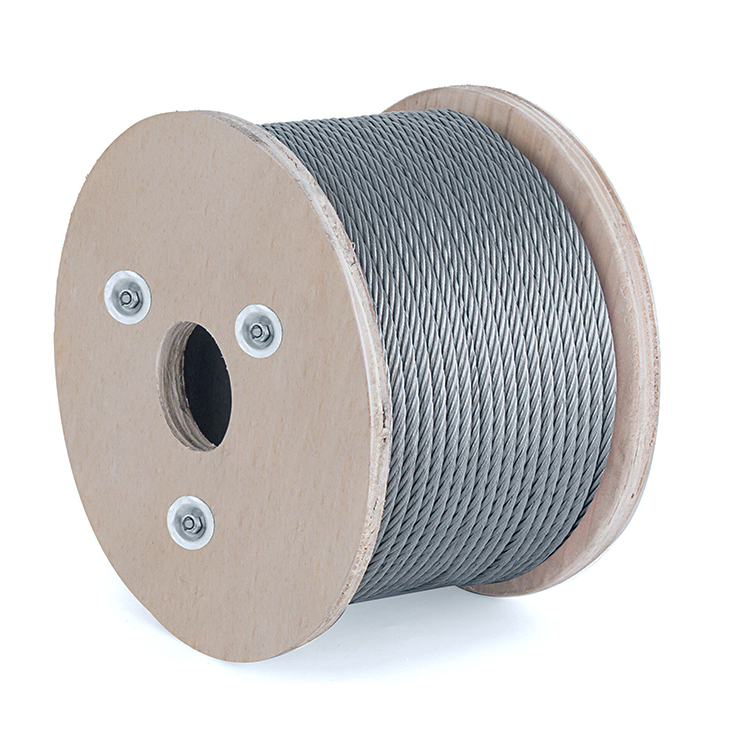

(1) steel wire ropes will be wrapped in wooden reel or plastic reel, then with plastic film
(2) put on pallets or in wooden case.
(3) packing as your requirements.
DELIVERY
We support international express for your sample order: Like TNT, DHL, FedEx, UPS, EMS, etc.
We shipping the bulk order by Sea, by train, etc.
Produce time: 7-15 working days
