Product Description
Currently, the two most widely used plastic coated steel wire ropes are: PU coated steel wire rope and PVC coated steel wire rope.
The full name of PU is polyurethane. Compared with PVC coated steel wire rope, it has good oil resistance, toughness, abrasion resistance, aging resistance and adhesion; the price is relatively high, and it is suitable for customers with higher requirements for product toughness and abrasion resistance.
PU Coated Steel Wire Ropes are widely used in gym cables, cannery lines, washing line, computer security cables, lock cable system, catenary systems, car control line , horticultural application, jumping rope, spring wire rope, guardrail applications.
In our factory, Plastic coated steel wire rope adopt fully automatic production equipment. The first step is to wrap the plastic coating on the wire rope. Then the rope is inspected by a fully automated control system to ensure that the plastic coated steel wire rope is evenly wrapped and has the same diameter. After cooling in the line, it is undergo finally quality inspection. then packed by a fully automatic baler to complete the entire production process, or directly enter the automatic cutting system to cut into small size.
Specification
| Product Name | PU coated steel wire rope |
| Material | Steel wire rope : galvanized steel /stainless steel 316/304/201,Coating ： PU |
| Surface ofSteel wire rope | hot dip galvanized, electro galvanized, polished ,oil coated, etc. |
| color | Transparent, green ,yellow, red, black , blue, purple, etc. |
| Construction ofSteel wire rope | 1*7 / 7*7/ 7*19/19*7,etc. |
| Applications | Aircraft Cable; Automobile Clutch Cable, Control Cables; Telecommunication , Elevators, woven wire sieve, handicraft, wire drawing, electrical home appliances and raw material, clocks and watches, mechanical equipment, hardware components, etc. |
Popular diameter
| Structure | Dia before coating (mm) | Dia after coating (mm) | Weight/100m(kg) | BL (Kn) |
| 7×7 | 0.8 | 1.00 | 0.32 | 0.53 |
| 7×7 | 1.00 | 1.20 | 0.47 | 0.56 |
| 7×7 | 1.20 | 1.50 | 0.72 | 0.81 |
| 7×7 | 1.50 | 2.00 | 1.20 | 1.27 |
| 7×7 | 2.00 | 2.50 | 1.96 | 2.25 |
| 7×7 | 2.00 | 3.00 | 2.50 | 2.25 |
| 7×7 | 3.00 | 4.00 | 5.00 | 3.52 |
| 7×19 | 4.00 | 5.00 | 8.20 | 8.33 |
| 7×19 | 5.00 | 6.00 | 12.30 | 13.03 |
| 7×19 | 6.00 | 8.00 | 19.84 | 18.76 |
| 7×19 | 8.00 | 10.00 | 32.81 | 33.35 |
Application

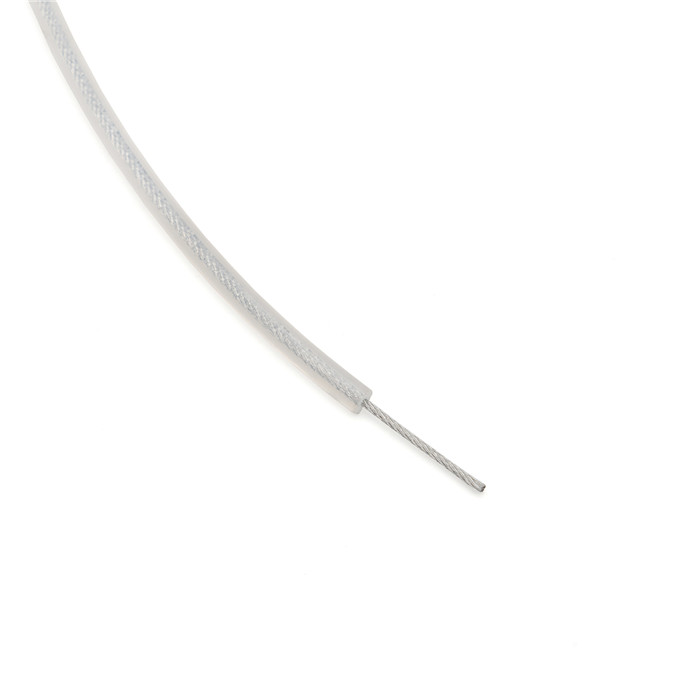

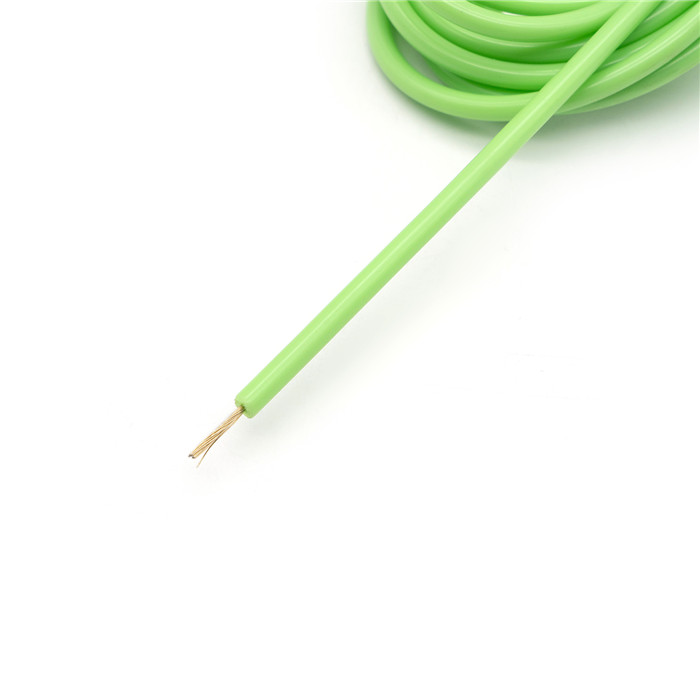

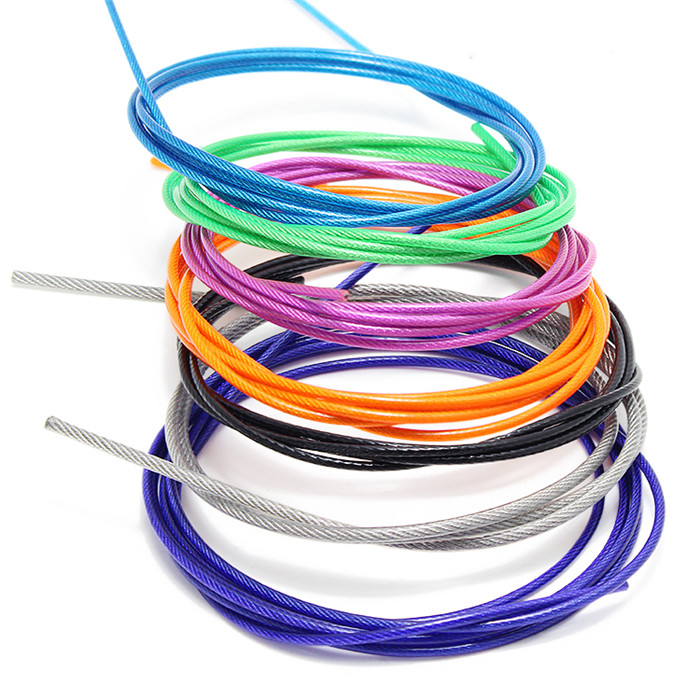

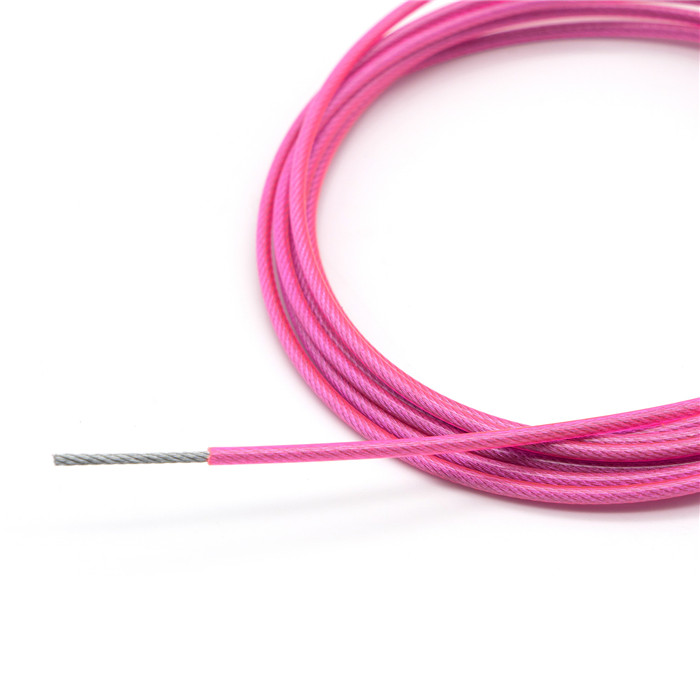

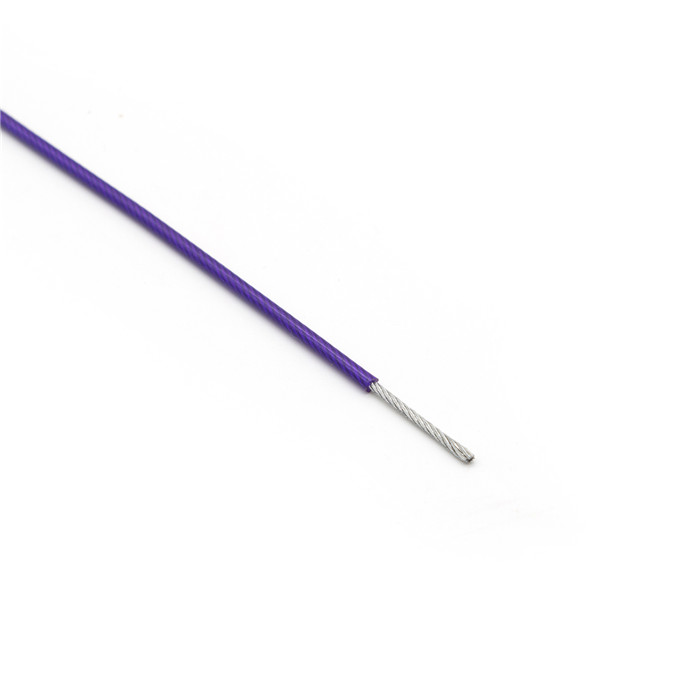

Product detail pictures:
